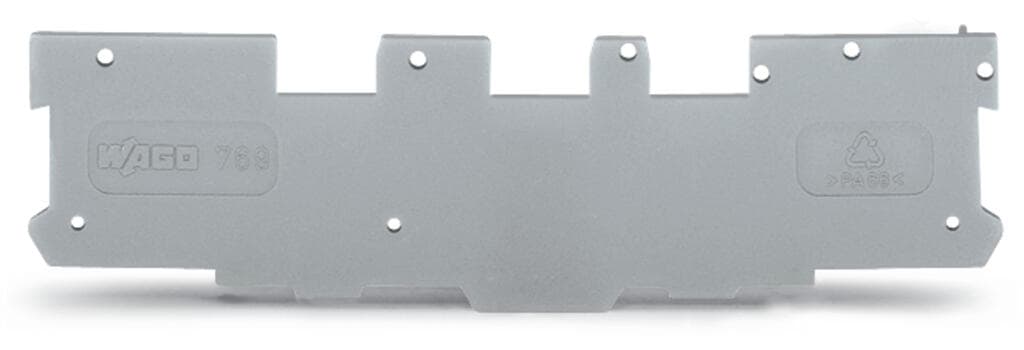

769-315
Product ID:44849
Updated: 2026/7/19
Key Features
- 1High-Quality Material: Made from durable, 1.1 mm thick material for long-lasting performance.
- 2Gray Color: Gray finish for easy identification and integration into your system.
- 3Compact Design: Measuring 24.1 mm in depth and 87.2 mm in height for space-efficient installation.
- 4Rohs Compliant: Compliant with ROHS regulations, ensuring environmental safety.
- 5Versatile Use: Suitable for end and intermediate plate applications in rail/chassis mount terminal blocks.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1.1?mm?/ 0.043?inches | Height | 87.2?mm?/ 3.433?inches |
| Depth | 24.1?mm?/ 0.949?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.063MJ | Weight | 2.1g |
| Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332587198 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
