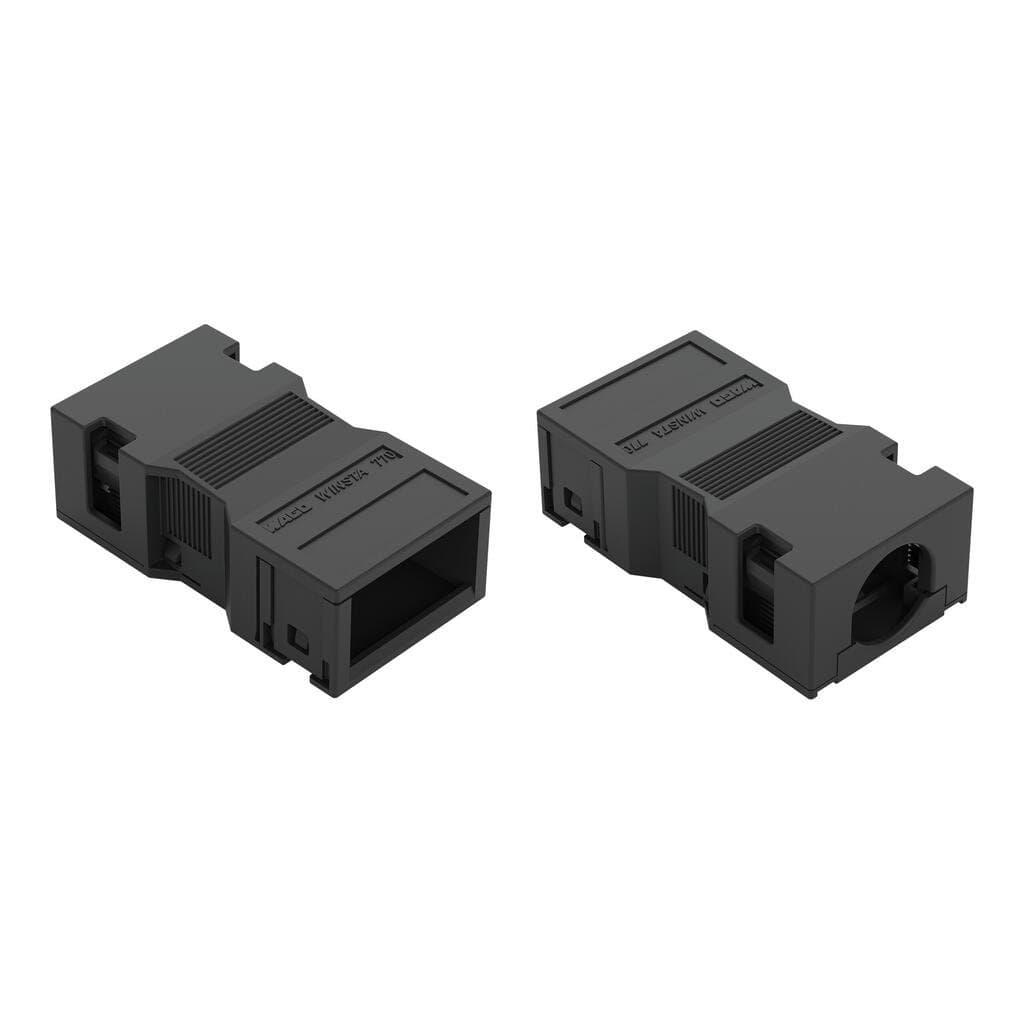

770-502/041-000
Product ID:49154
Updated: 2026/7/13
Key Features
- 1Secure Connections: Ensures reliable and locked connections with a locking clip.
- 2Versatile Cable Fit: Compatible with cables ranging from 7.0 to 10.5 mm in diameter.
- 3Durable Material: Constructed from high-quality materials for long-lasting performance.
- 4Easy Installation: Simple to install and use, reducing setup time and effort.
- 5Compliant with Standards: Meets industry standards for electrical safety and performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pin spacing | 10 mm / 0.394 inches | Width | 24.6?mm?/ 0.969?inches |
| Height | 15.9?mm?/ 0.626?inches | Depth | 45?mm?/ 1.772?inches |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.266MJ | Weight | 6.4g |
| Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
| ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821137559 |
| Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
| Number of poles | 2 | Connectable sheathed cable diameter | 7 … 10.5?mm |
| Strip length (outer insulation) | 35mm |
Specifications may be subject to change without notice
