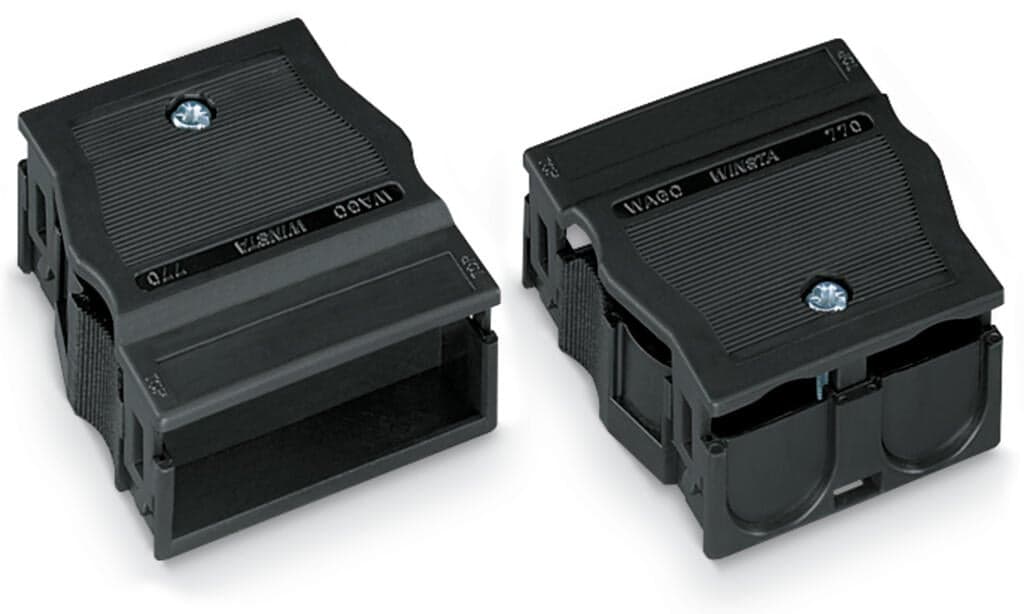

770-504
Product ID:41266
Updated: 2026/7/13
Key Features
- 1High-Quality Material: Made from durable polyamide (PA66) insulation.
- 2Easy Installation: Features Push-in CAGE CLAMP technology for error-free and time-saving installation.
- 3Flexible Design: Suitable for various installation requirements with a strip length of 55 mm.
- 4Cost-Effective: Reduces the need for servicing and lowers overall costs.
- 5Compliant with Standards: Meets UL94 V0 fire load and RoHS compliance standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Pin spacing | 10 mm / 0.394 inches | Width | 44.6?mm?/ 1.756?inches |
| Height | 17?mm?/ 0.669?inches | Depth | 50?mm?/ 1.969?inches |
| Note (material data) | Information on material specifications can be found here | Color | black |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.361MJ |
| Weight | 11.8g | Processing temperature | -5 … +40?°C |
| Continuous operating temperature | -35 … +85?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 | ETIM 9.0 | EC002863 |
| ETIM 8.0 | EC002863 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 25?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332755313 |
| Customs tariff number | 8538908160 | RoHS Compliance Status | Compliant,No Exemption |
| Number of poles | 4 | Connectable sheathed cable diameter | 9 … 13?mm |
| Strip length (outer insulation) | 55mm |
Specifications may be subject to change without notice
