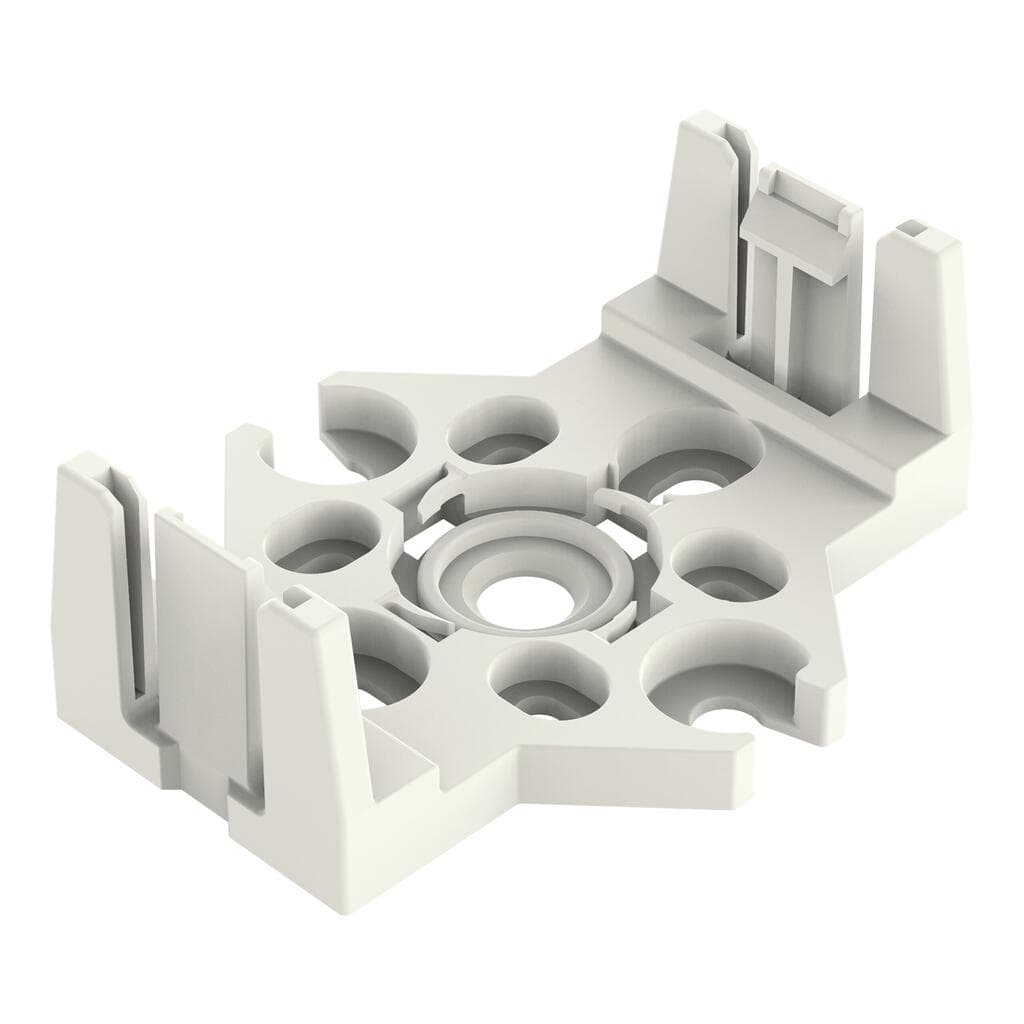

770-675
Product ID:49061
Updated: 2026/7/13
Key Features
- 1Flexible Wiring: Easily tap off cables at any time and location without cutting.
- 2Phase Selection: Integrated phase selection for efficient load management.
- 3Insulated Design: Fully insulated to ensure safe and reliable connections.
- 4CAGE CLAMP Technology: Automatic clamping ensures secure connections without wire damage.
- 5Versatile Applications: Suitable for various cable sizes and loads, perfect for complex wiring systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Mounting type | Screw mounting | Suitable | for distribution connectors (except T-distribution connectors); 5-pole |
| Note (material data) | Information on material specifications can be found here | Color | white |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.185MJ | Weight | 6.2g |
| Processing temperature | -5 … +40?°C | Continuous operating temperature | -35 … +85?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
| eCl@ss 10.0 | 27-44-06-92 | eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 | ETIM 8.0 | EC002863 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4017332755559 | Customs tariff number | 3926909985 |
| RoHS Compliance Status | Compliant,No Exemption | Number of poles | 5 |
Specifications may be subject to change without notice
