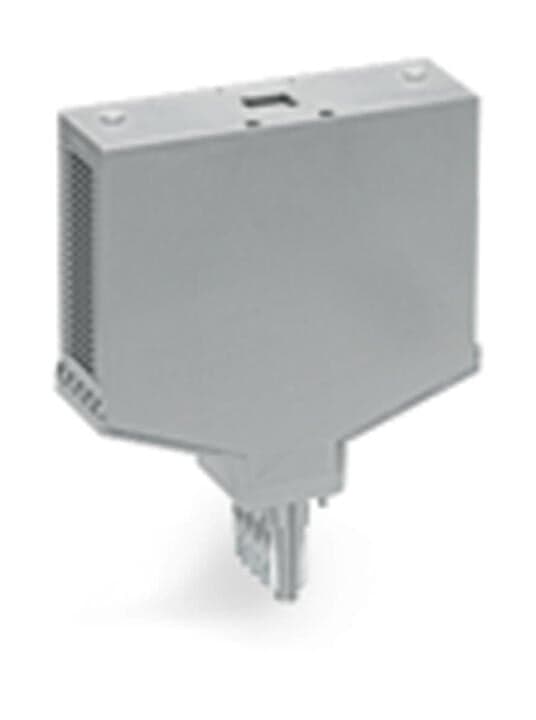

786-103
Product ID:47403
Updated: 2026/7/13
Key Features
- 1Constructed with robust materials for long-lasting performance.
- 2Supports a wide range of connectors for flexible application use.
- 3Optimized for reduced energy consumption and enhanced reliability.
- 4Built to withstand harsh environments and heavy use.
- 5Simple and quick installation process with minimal setup required.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated continuous current | 6A | Rated voltage | 250V |
| Rated surge voltage | 4kV | Pollution degree | 3 |
| Number of poles | 10 | Width | 25?mm?/ 0.984?inches |
| Height | 84 mm / 3.307 inches | Depth from upper-edge of DIN-rail | 82.5 mm / 3.243 inches |
| Housing design | Plug for carrier terminal blocks | Mounting type | Pluggable module for receptacle terminal blocks |
| Color | gray | Fire load | 0.975MJ |
| Weight | 41.2g | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-18-27-02 | eCl@ss 9.0 | 27-18-27-02 |
| ETIM 9.0 | EC001031 | ETIM 8.0 | EC001031 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 10?(1)?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4050821082354 | Customs tariff number | 8547200000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
