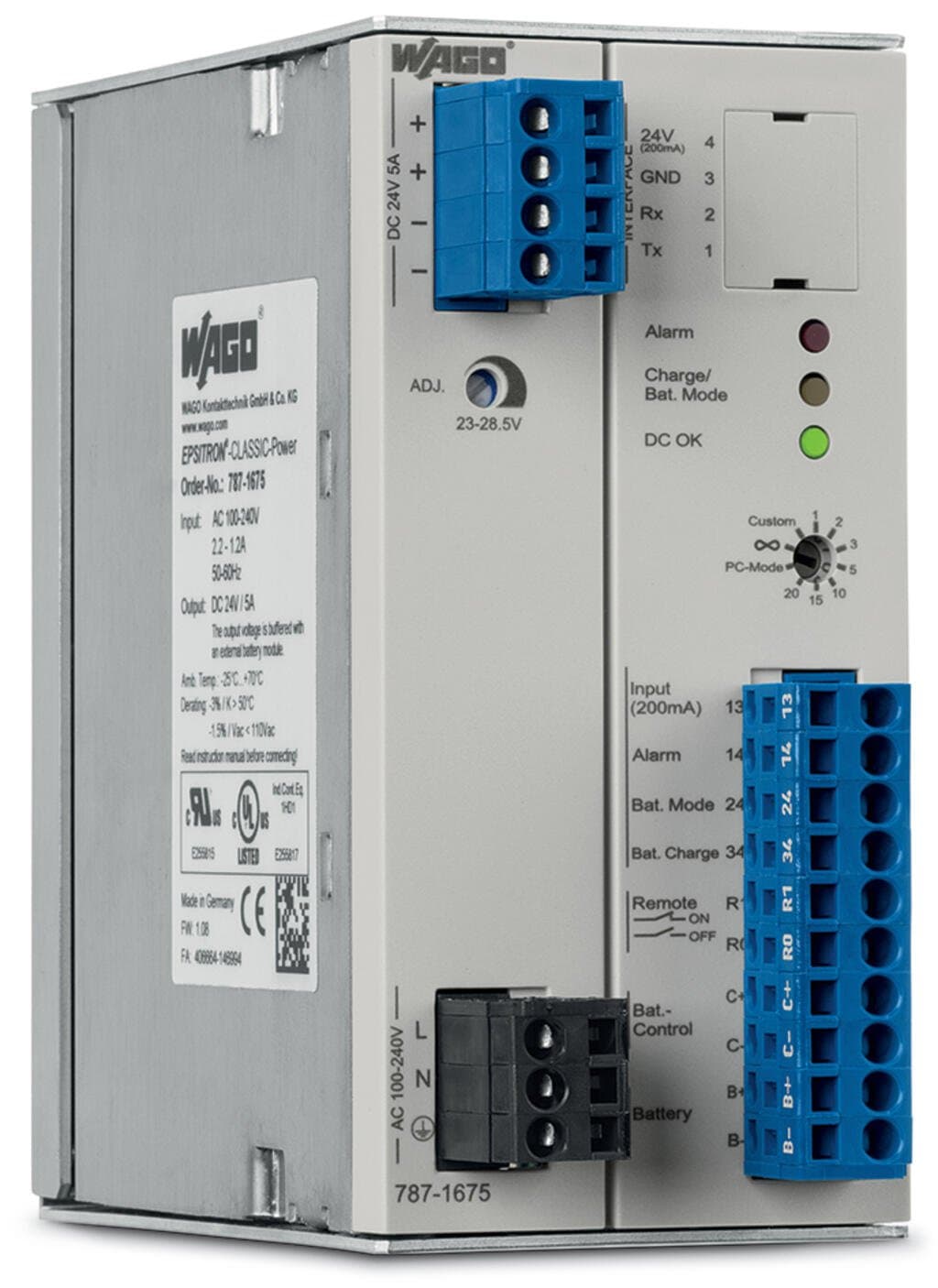

787-1675
Product ID:46693
Updated: 2026/7/13
Key Features
- 1High-speed data transmission up to 10 Gbps.
- 2Compact design for easy integration in tight spaces.
- 3Durable and resistant to harsh industrial environments.
- 4Supports a wide range of industrial protocols.
- 5Easy installation with minimal cabling requirements.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Isolation voltage (sec.-PE) | DC 0.7?kV | Protection class | I |
| Protection type | IP20; per EN 60529 | Reverse voltage protection | yes |
| Overvoltage category | II | Pollution degree | 2 |
| Transient suppression (primary) | Varistor | Overvoltage protection; secondary | Internal protective circuit |
| Parallel operation | Yes, max. 3 battery modules forbuffer time extension | Series operation | No |
| MTBF | > 500,000 h (per IEC 61709) | Connection type 1 | Input/Output/Signaling |
| Connection technology | CAGE CLAMP? | WAGO connector | WAGO 721 Series |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
| Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Connection type 2 | Interface |
| Connection technology 2 | CAGE CLAMP? | WAGO connector 2 | WAGO 734 Series |
| Solid conductor 2 | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor 2 | 0.08 … 1.5?mm2?/ 28 … 14?AWG |
| Strip length 2 | 6 … 7?mm?/ 0.24 … 0.28?inches | Cable length (max.) | 3?m (Output, Battery Control) |
| Width | 60?mm?/ 2.362?inches | Height | 127?mm?/ 5?inches |
| Depth from upper-edge of DIN-rail | 135.5?mm?/ 5.335?inches | Mounting type | DIN-35 rail |
| Fire load | 0.78MJ | Weight | 885g |
| Ambient temperature (operation) | -25 … +70 °C (Device starts at ?40 °C (type-tested)) | Ambient temperature (storage) | -25 … +85 °C |
| Relative humidity | 5 … 96?% (no condensation permissible) | Derating | ?3 %/K (> 50 °C) |
| Climatic category | 3K3 (per EN 60721) | Conformity marking | CE |
| Standards/specifications | EN 61010-1 | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-04-07-01 | eCl@ss 9.0 | 27-04-07-01 |
| ETIM 9.0 | EC002540 | ETIM 8.0 | EC002540 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4050821502616 | Customs tariff number | 8504409510 |
| RoHS Compliance Status | Compliant,No Exemption | Nominal input voltage [V] | 1 x AC 100 ... 240 V |
| Input voltage range | AC?85 … 264?V;?DC?120 … 372?V | Input voltage derating | -1.5 %/V (< 110 VAC); -1 %/V (< 150 VDC) |
| Nominal mains frequency range | 44 … 66 Hz;0 Hz | Input current I<sub>i</sub> | ≤?1.1?A (230 VAC; 5 ADC);?≤?2.2?A (110 VAC; 5 ADC) |
| Inrush current | ≤?30?A | Power factor correction (PFC) | Passive |
| Nominal output voltage [V] | DC?24?V (SELV) | Output voltage range | DC?24?V |
| Nominal output current I<sub>o nom</sub> | 5?A | Nominal output power | 120W |
| Deviation | ≤?1?% | Residual ripple | ≤?50?mV (peak-to-peak) |
| Current limitation | 1.1 x Io nom(typ.); TopBoost | Overload behavior | Constant current |
| Buffer time | 1?s … 20?min or constant; PC mode; configurable via software | Switch-on threshold (adjustable) | DC?20 … 25.5?V (Adjustable via software; 22 VDC (pre-configured)) |
| Charging current | 0.3 … 1?A | End-of-charge voltage | DC?26 … 29.5?V (temperature-controlled; optional fixed setting) |
| Recommended battery module | 787-871, 787-872, 787-873, 787-876, 787-1671 | Signaling | 1 x Alarm LED (red) |
| Operation status indicator | Green LED (DC OK) | Communications | RS-232 serial interface |
| Remote input | Switching buffer mode off | Power loss P<sub>l</sub> | ≤?5.2?W (buffer mode; 24 VDC; 5 A);?≤?17?W (Mains operation; 230 VAC; 24 VDC; 5 A);?≤?22?W |
| Power loss (max.) P<sub>l (max.)</sub> | 30?W (90 VAC; charging) | Efficiency (typ.) | 88?% |
| Internal fuse | T 4 A / 250 VAC (input side) | Backup fusing (required) | An external DC fuse is required for the DC input voltage. |
| Backup fusing (recommended) | Circuit breaker: 6 A, 10 A, 16 A; Tripping characteristic: B or C |
