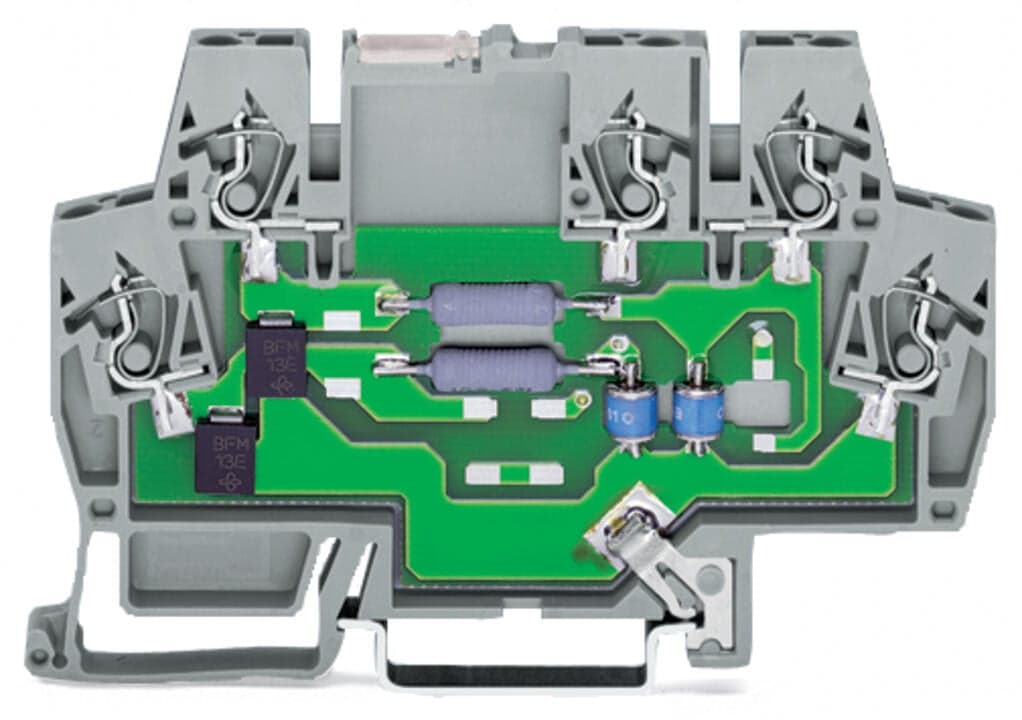

792-800
Product ID:43613
Updated: 2026/7/13
Key Features
- 1Prevents unplanned downtime and ensures system uptime.
- 2Compact design fits perfectly on DIN-35 rail, saving space in control and bus technology.
- 3Safeguards your system against overvoltage, ensuring continuous operation.
- 4Designed for two signal paths with a common suppressor, suitable for high baud rate applications.
- 5Supports up to 23VAC or 33VDC, making it versatile for various voltage requirements.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | The coordination characteristics of the surge arrester provide information about its discharge capacity and protection capability. | Nominal operating voltage | DC?24?V |
| Maximum continuous voltage | AC?23?V?/ DC?33?V | Nominal current | 0.5A |
| Nominal discharge current (8/20?μs) (line) | 5?kA | Nominal discharge current (8/20 μs) (total) | 10?kA |
| Protection level (line/line) (cat. C2 at I<sub>N</sub>) | ≤?110?V | Protection level (line/protected ground) (cat. C2 at I<sub>N</sub>) | ≤?65?V |
| Protection level (line/line) (cat. C3 at I<sub>N</sub>) | ≤?90?V | Protection level (line/protected ground) (cat. C3 at I<sub>N</sub>) | ≤?45?V |
| Limit frequency (line/line) | 6MHz | Limit frequency (line/protected ground) | 6MHz |
| Impedance | 1.8Ω | Protection type | IP00; IP20 with end and intermediate plate |
| Connections (number) | 5 | Connection technology | CAGE CLAMP? |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG | Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
| Height | 91 mm / 3.58 inches | Depth from upper-edge of DIN-rail | 56 mm / 2.2 inches |
| Mounting type | DIN-35 rail | Weight | 38.8g |
| Ambient temperature (operation) | -40 … +80 °C | Ambient temperature (storage) | -40 … +80 °C |
| Standards/specifications | IEC 61643-21 | Product Group | 21 (Special Products Electronic) |
| eCl@ss 10.0 | 27-13-08-05 | eCl@ss 9.0 | 27-13-08-05 |
| ETIM 9.0 | EC000943 | ETIM 8.0 | EC000943 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | Box | Country of origin | DE |
| GTIN | 4017332780735 | Customs tariff number | 8536308000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
