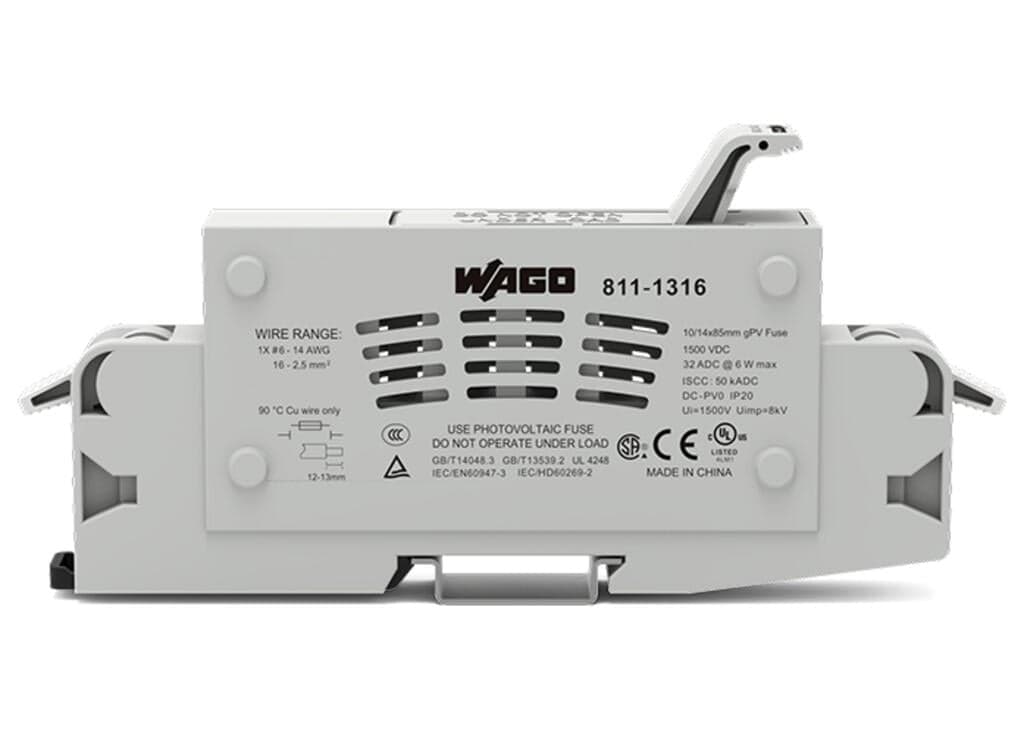

811-1316
Product ID:38868
Updated: 2026/7/13
Key Features
- 1Secure Connections: The WAGO 811-1316 features CAGE CLAMP technology for secure and easy connections.
- 2High Voltage Compatibility: Designed for 1500 VDC, making it suitable for high voltage applications in motor control and solar industries.
- 3Maintenance-Free: Vibration-proof and corrosion-resistant, ensuring long-lasting performance.
- 4Photovoltaic Ready: Specifically designed for cylindrical fuses 10/14 x 85 mm, ideal for photovoltaic applications.
- 5UL 4248 Certified: Meets stringent safety standards, ensuring reliability and safety in electrical systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | The fuse holder must not be opened under load. | Safety information 2 | Do not cover the ventilation openings. |
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 22.3?mm?/ 0.878?inches |
| Height | 154.9?mm?/ 6.098?inches | Depth from upper-edge of DIN-rail | 66?mm?/ 2.598?inches |
| Design | horizontal type | Mounting type | DIN-35 rail |
| Mounting (note) | The fixed foot of the fuse terminal block must face upwards so that the fuse cannot fall out. | Protection type | IP20 |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Weight | 78.4g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -40 … +125?°C |
| ETIM 9.0 | EC002705 | ETIM 8.0 | EC002705 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 12?pcs |
| Packaging type | box | Country of origin | CN |
| GTIN | 4055144071092 | Customs tariff number | 85369095000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/HD 60269-2 |
| Rated voltage (III / 3) | 1500V | Rated current | 32A |
| Ratings (note) | Electrical ratings are specified in the technical data of both fuse terminal block and fuse. When selecting glass cartridge fuses, make sure that the listed power loss is not exceeded. | Approvals per | CSA 22.2 |
| Rated voltage (UL) | 1,500V | Rated current UL | 32A |
| Rated current (CSA) | 32A | Rated voltage (CSA) | 1,500V |
| Power loss P<sub>l</sub> (max.) | 6W | Power loss P<sub>l</sub> max. overload and short-circuit protection (individual arrangement) | 3W |
| Power loss P<sub>l</sub> max. overload and short-circuit protection (group arrangement) | 3W | Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement) | 3W |
| Power loss P<sub>l</sub> max. short-circuit protection (group arrangement) | 3W | Voltage type 1 | DC |
| Fuse receptacle | pivoting | Fuse type | Cylindrical fuse; 10/14 x 85 mm; for photovoltaic applications |
| Connection technology | CAGE CLAMP? | Actuation type | Lever |
| Connectable conductor materials | Copper | Solid conductor | 2.5 … 16?mm2?/ 14 … 6?AWG |
| Stranded conductor | 2.5 … 16?mm2?/ 14 … 6?AWG | Fine-stranded conductor | 2.5 … 16?mm2?/ 14 … 6?AWG |
| Strip length | 12 … 13?mm?/ 0.47 … 0.51?inches | Number of poles | 1 |
| Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
