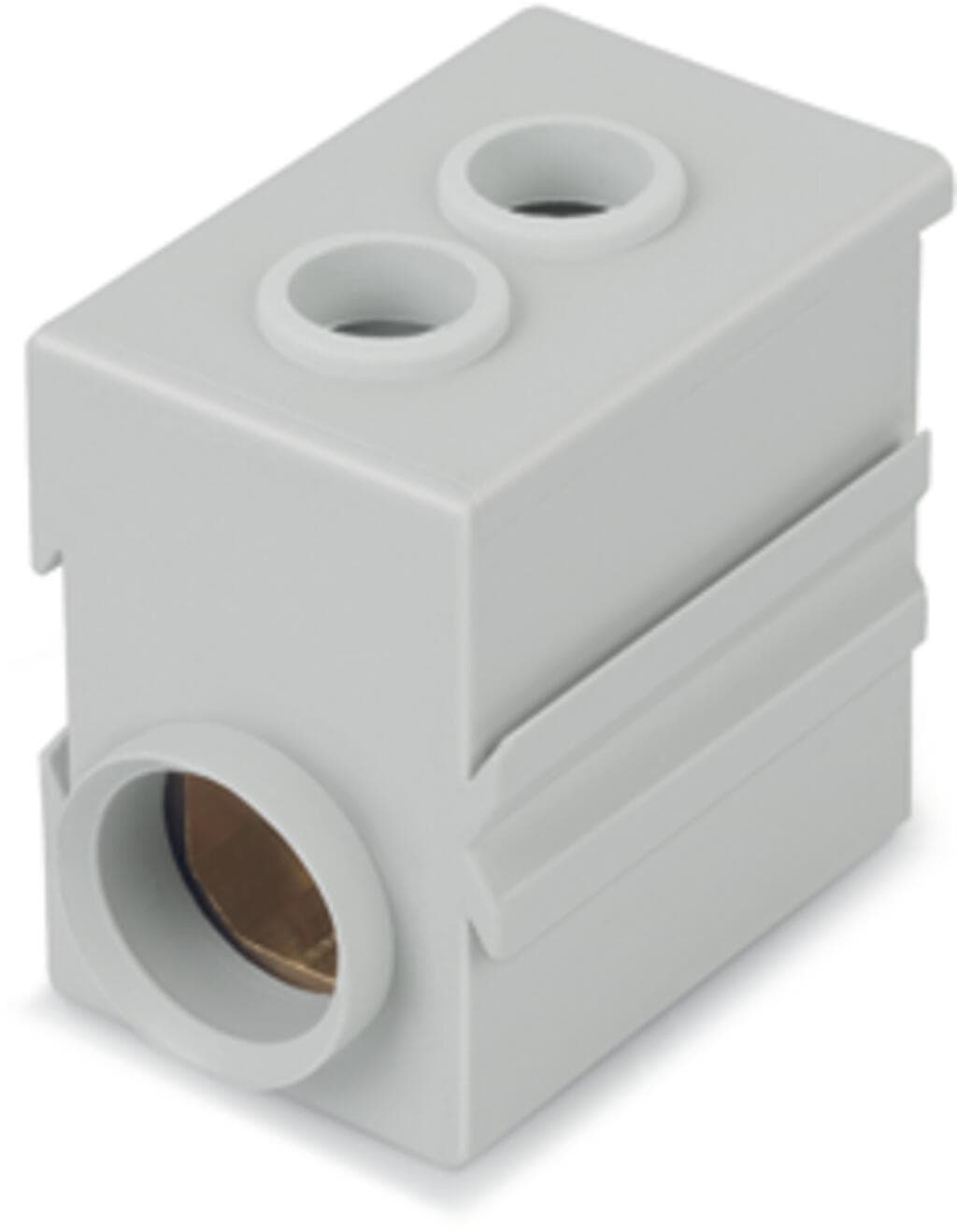

811-471
Product ID:38565
Updated: 2026/7/13
Key Features
- 1Screw-type connection for secure wiring
- 2Operating tool actuation for easy handling
- 3Compatible with 6-35 mm² solid conductors
- 4Light gray color for easy identification
- 5RoHS compliant for environmental safety
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Number of levels | 1 | Torque | 4Nm |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Weight | 20g | eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 16?(4)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4050821838654 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 600V | Rated voltage (III/3) 2 | 1000V |
| Voltage type 1 | AC | Voltage type 2 | DC |
| Connection technology | Screw connection | Actuation type | Operating tool |
| Connectable conductor materials | Copper | Solid conductor | 6 … 35?mm2?/ 10 … 2?AWG |
| Stranded conductor | 6 … 35?mm2?/ 10 … 2?AWG | Fine-stranded conductor | 4 … 25?mm2?/ 12 … 4?AWG |
| Fine-stranded conductor; with insulated ferrule | 4 … 25?mm2?/ 12 … 4?AWG | Strip length | 14?mm?/ 0.55?inches |
Specifications may be subject to change without notice
