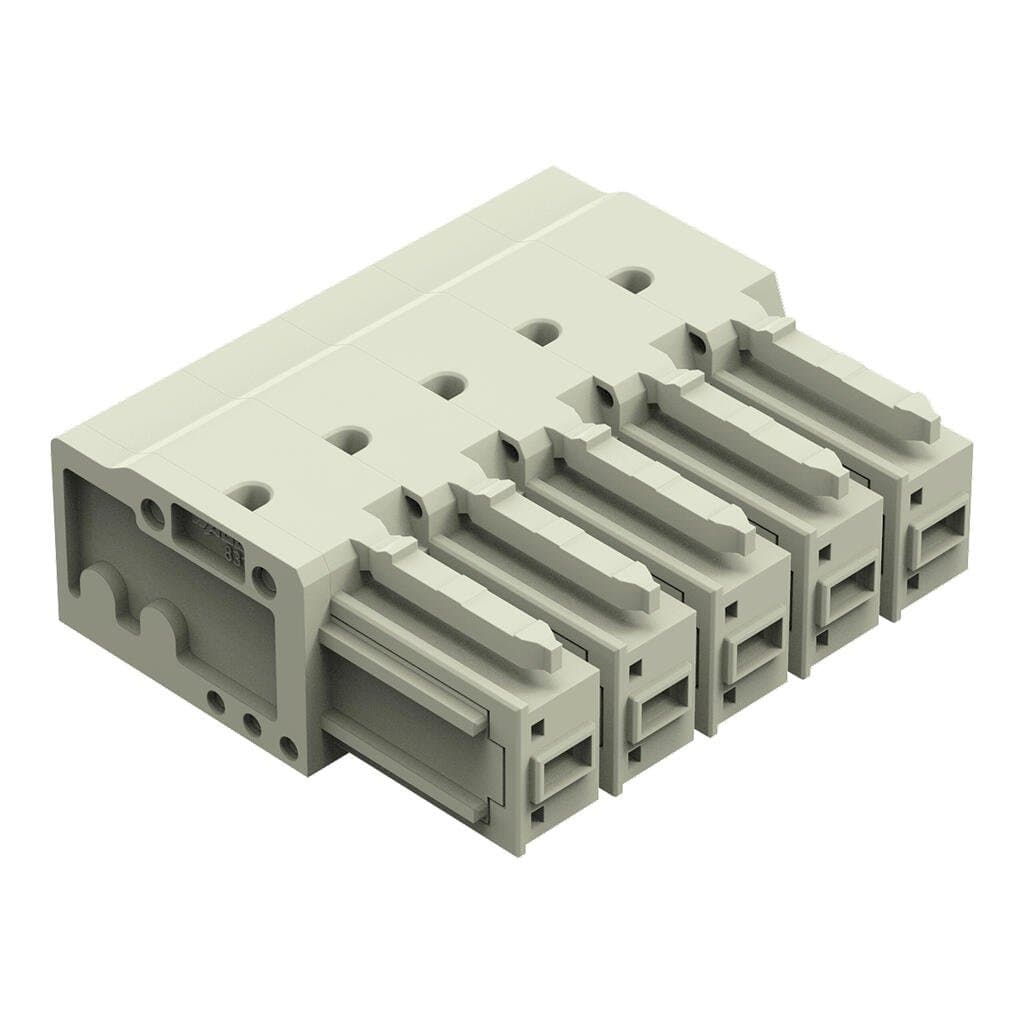

831-3525
Product ID:43019
Updated: 2026/10/15
Key Features
- 1High electrical and mechanical stability with three solder pins per pole.
- 2100% protected against mismating for reliable connections.
- 3Angled design for versatile mounting options on PCBs.
- 4Rated for 630V and 41A, suitable for various applications.
- 5Made from durable materials including polyamide (PA66) and tin-plated electrolytic copper.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | TheMCS – MULTI CONNECTION SYSTEMincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Total number of potentials | 5 |
| Number of connection types | 1 | Pin spacing | 7.62?mm?/ 0.3?inches |
| Width | 40.0?mm?/ 1.575?inches | Height | 18.2?mm?/ 0.717?inches |
| Height from the surface | 14.2?mm?/ 0.559?inches | Depth | 36.2?mm?/ 1.425?inches |
| Solder pin length | 4mm | Solder pin dimensions | 1 x 1.2?mm |
| Drilled hole diameter with tolerance | 1.7(+0.1)mm | Variable coding | Yes |
| Anti-rotation protection | Yes | Contact type (pluggable connector) | Female header |
| Connector (connection type) | for PCB | Mismating protection | Yes |
| Plugging without loss of pin spacing | No | Mating direction to the PCB | 0° |
| Locking of plug-in connection | none | PCB contact | THT |
| Solder pin arrangement | over the entire female connector (in-line) | Note (material data) | Information on material specifications can be found here |
| Color | light gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
| Fire load | 0.012MJ | Weight | 26.4g |
| Limit temperature range | -60 … +105?°C | Processing temperature | -35 … +60?°C |
| ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 24?pcs |
| Packaging type | Box | Country of origin | PL |
| GTIN | 4066966087031 | Customs tariff number | 8536694040 |
| Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated voltage (III/2) | 630V |
| Rated surge voltage (III/2) | 6kV | Nominal voltage (II/2) | 1000V |
| Rated surge voltage (II/2) | 6kV | Rated current | 41A |
| Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Number of poles | 5 |
