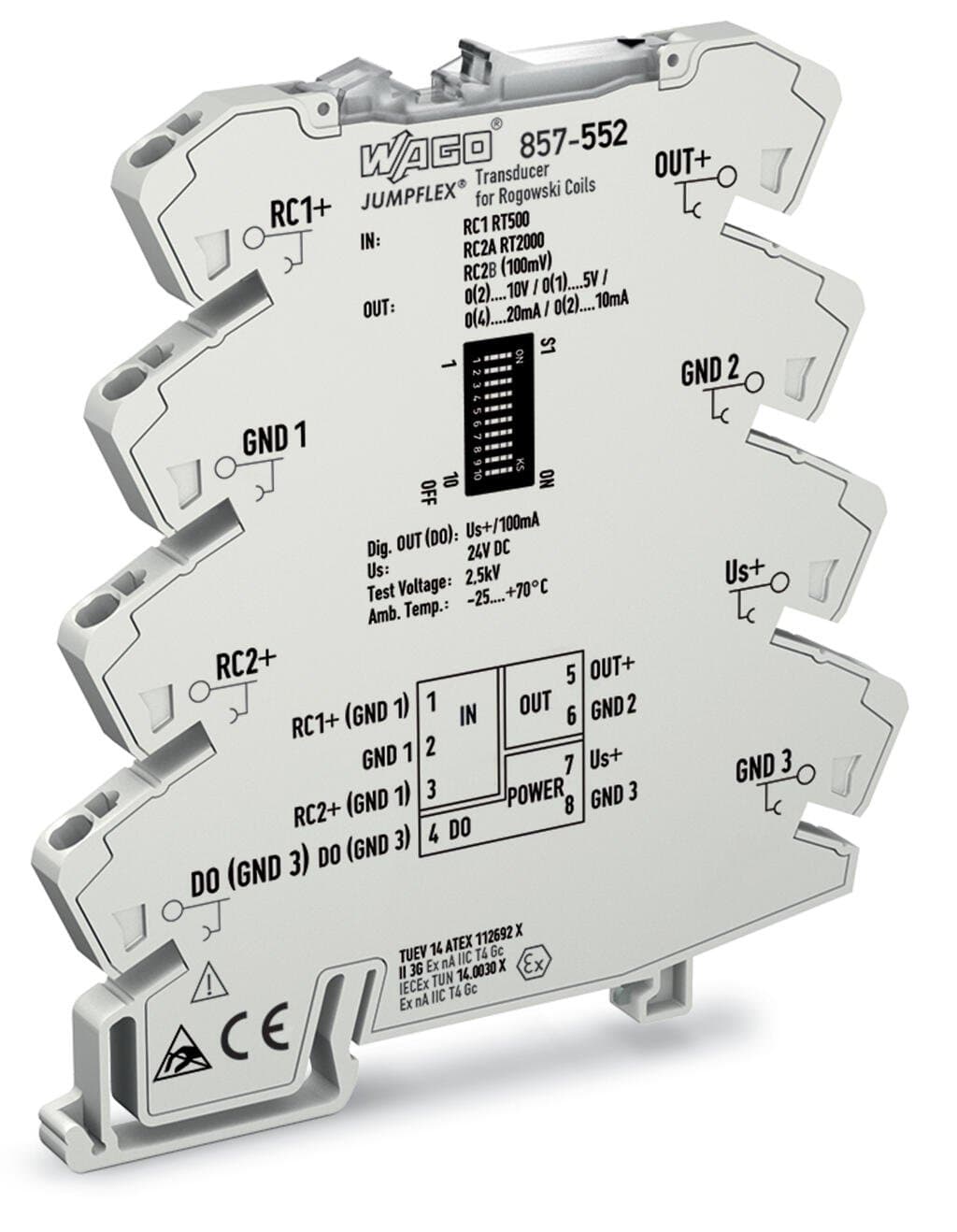

857-552
Product ID:42892
Updated: 2026/4/3
Key Features
- 1Precision Current Measurement: Records RMS values from alternating currents via Rogowski coils.
- 2Versatile Outputs: Provides analog outputs in current (0-10 mA, 2-10 mA, 0-20 mA, 4-20 mA) and voltage (0-5 V, 1-5 V, 0-10 V, 2-10 V).
- 3Easy Configuration: Configurable via DIP switch and software/app interface.
- 4Durable Design: Operates within an ambient temperature range of -25°C to +70°C with IP20 protection.
- 5Efficient Installation: Features Push-in CAGE CLAMP spring connections for easy installation on DIN-35 rail.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App | Protection type | IP20 |
| Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
| Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
| Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches | Mounting type | DIN-35 rail |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.418MJ | Weight | 35.1g |
| Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
| Conformity marking | CE | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-21-01-23 | eCl@ss 9.0 | 27-21-01-23 |
| ETIM 9.0 | EC002475 | ETIM 8.0 | EC002475 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | bag | Country of origin | DE |
| GTIN | 4050821476917 | Customs tariff number | 8543704500 |
| CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 1f195258-d879-4341-9432-55132a5988a4 | SCIP notification number (Belgium) | 7814c94f-657c-4f03-83f0-8d7593e6728c |
| SCIP notification number (Bulgaria) | 018c696b-7940-4720-a5c3-00dd668a954d | SCIP notification number (Czech Republic) | 004a50ca-f1d7-4851-9876-6e3e26a6990e |
| SCIP notification number (Denmark) | a59197af-a118-401f-819c-6449ecf2a26d | SCIP notification number (Finland) | 6287e118-0731-40fa-98e2-c8475af11b0f |
| SCIP notification number (France) | 467a5cc3-0b72-4f42-ace2-e6489a6326ca | SCIP notification number (Germany) | a302d4fa-40b9-4b69-b303-d88a5794f8c0 |
| SCIP notification number (Hungary) | 136cc465-5e70-4b47-92a5-43b7d1ccd0a3 | SCIP notification number (Italy) | f54581b5-8ed8-406f-9e56-d34282f11849 |
| SCIP notification number (Netherlands) | 916f0ff9-e787-458a-afa0-12ec5dba73b4 | SCIP notification number (Poland) | 862d360a-3d4e-4510-9319-09ac80339012 |
| SCIP notification number (Romania) | 26692719-0992-4210-bc52-9edf89ce1c3d | SCIP notification number (Sweden) | 5a508da9-fb93-492b-aa4a-14900ec6a865 |
| Configuration options | DIP switch | Input signal type | Voltage |
| Input signal (V) | AC?10.05?mV (RC1) | Sensitivity | RC2B: 22.5 mV/kA |
| Measurement range (current) | AC?500?A (RC1);?AC?2000?A (RC2A);?AC?4000?A (RC2B) | Frequency range | 50?Hz (Sinusoidal signals) |
| Response threshold | ≤ 1 % (of measurement range nominal value) | Resolution (current) | 250 mA (RC1) |
| Output signal type | Current | Output signal (V) | 0 … 5?V |
| Output signal (A) | 0 … 10?mA | Load impedance (voltage output) | ≥?1?kΩ |
| Load impedance (current output) | ≤?600?Ω | Switching voltage (DO) max. | Supply voltage applied |
| Continuous current (DO) max. | 100?mA (no internal restriction) | Number of switching thresholds (DO) | 1 (adjustable) |
| Limit frequency | 2?kHz | Software filter (adjustable) | Moving average value (filter level: 30) |
| Step response (typ.) | 60?ms | Transmission error (max.) | ≤ 1 % (of the full scale value) |
| Temperature coefficient | ≤ 0.01 %/K | Power supply type | 24?VDC |
| Nominal supply voltage U<sub>S</sub> | DC?24?V | Supply voltage range | ±30?% |
| Current consumption at nominal supply voltage | ≤?40?mA?(+ IDO) | Test voltage (input/output/supply) | AC 2.5?kV;?50?Hz;?1?min |
Specifications may be subject to change without notice
