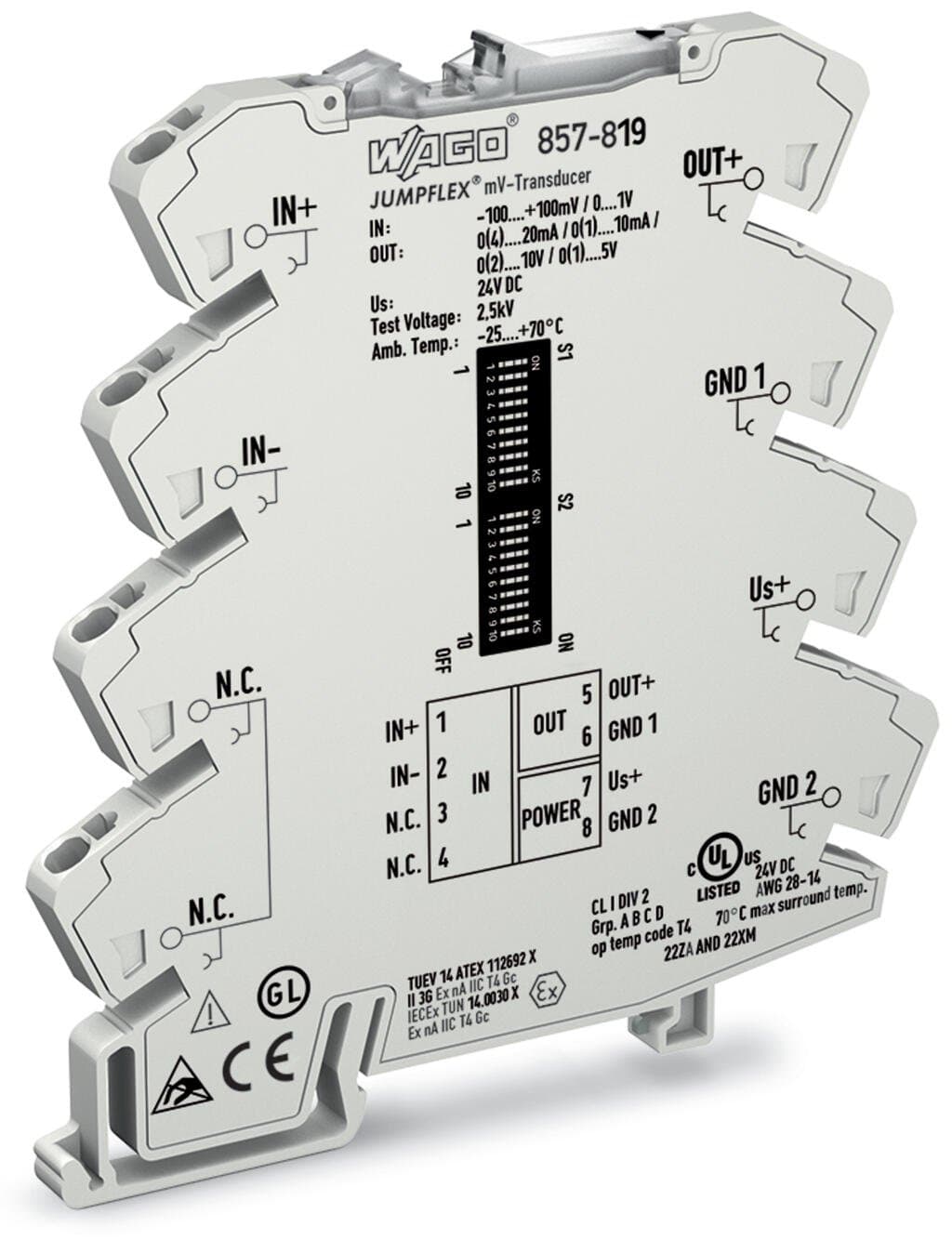

857-819
Product ID:43340
Updated: 2026/4/3
Key Features
- 1Advanced Bipolar Voltage Input: Handles signals from -100mV to 1V DC.
- 2Configurable Output Signals: Offers 0-10mA, 2-10mA, 0-20mA, and 4-20mA current outputs, as well as 0-5V, 1-5V, and 0-10V voltage outputs.
- 3Easy Configuration: Utilizes DIP switch and software/app interface for precise setup.
- 4High Reliability: Features safe 3-way isolation with a 2.5 kV test voltage per EN 61140.
- 5Compact Design: Mounts on DIN-35 rail with a width of just 6 mm.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Additional setting options via WAGO Interface Configuration Software or WAGO Interface Configuration App | Protection type | IP20 |
| Connection technology | Push-in CAGE CLAMP? | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 14?AWG |
| Fine-stranded conductor | 0.34 … 2.5?mm2?/ 22 … 14?AWG | Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches |
| Width | 6?mm?/ 0.236?inches | Height | 94?mm?/ 3.701?inches |
| Depth from upper-edge of DIN-rail | 97.8?mm?/ 3.85?inches | Mounting type | DIN-35 rail |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.363MJ | Weight | 36.3g |
| Ambient temperature (operation) | -25 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
| Conformity marking | CE | EMC immunity to interference | EN 61000-6-2 |
| EMC emission of interference | EN 61000-6-4 | Standards/specifications | DNV |
| Product Group | 6 (INTERFACE ELECTRONIC) | eCl@ss 10.0 | 27-21-01-20 |
| eCl@ss 9.0 | 27-21-01-20 | ETIM 9.0 | EC002653 |
| ETIM 8.0 | EC002653 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4045454665975 |
| Customs tariff number | 8543704500 | CAS-No. | 1303-86-2 |
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) | SCIP notification number (Austria) | 49e9c757-c3de-45f5-aa94-fa829ce66621 |
| SCIP notification number (Belgium) | 3add6792-d6b4-4a60-b10b-2775d1050079 | SCIP notification number (Bulgaria) | a0000eb0-9c45-4d8f-a613-6ba463247146 |
| SCIP notification number (Czech Republic) | 845b3bf4-8af5-4eb2-85fe-6b1bffc3a9db | SCIP notification number (Denmark) | fc708c3a-9f06-4678-a073-55db81ddfebb |
| SCIP notification number (Finland) | 0210ffd1-fff4-401b-b2b7-efb00f735dfd | SCIP notification number (France) | a289d34e-7a35-4a49-81d6-c36c8cf5f8a4 |
| SCIP notification number (Germany) | 928af8ea-3919-43d6-9131-d135fb0ddd0b | SCIP notification number (Hungary) | 9e60857b-8e32-4df9-8f55-10326f32222f |
| SCIP notification number (Italy) | 304a20bf-0ad3-44e3-a7c7-a57f7458854f | SCIP notification number (Netherlands) | e69a77bc-9dc3-4a4d-aaf3-705677644c26 |
| SCIP notification number (Poland) | 6361bdca-953e-4872-80fc-01867f4f542f | SCIP notification number (Romania) | d6046b0c-fd20-46ba-b839-4cd262bb8117 |
| SCIP notification number (Sweden) | 51812d90-7f3f-4f0b-af26-1ec84c334379 | Configuration options | DIP switch |
| Input signal type | Voltage | Input signal (V) | ±100?mV |
| Input resistance (voltage input) | ≥?1?M? | Input voltage (max.) | ±31.2 VDC |
| Measurement span (min.) | 10?mV | Output signal type | Current |
| Output signal (V) | 0 … 5?V | Output signal (A) | 0 … 10?mA |
| Load impedance (voltage output) | ≥?2?kΩ | Load impedance (current output) | ≤?600?Ω |
| Step response (typ.) | 50?ms | Transmission error (typ.) | ≤ 0.1 % at full measurement span |
| Temperature coefficient | ≤ 0.01 %/K | Power supply type | 24?VDC |
| Nominal supply voltage U<sub>S</sub> | DC?24?V | Supply voltage range | ±30?% |
| Current consumption at nominal supply voltage | ≤?40?mA | Test voltage (input/output/supply) | AC 2.5?kV;?50?Hz;?1?min |
Specifications may be subject to change without notice
