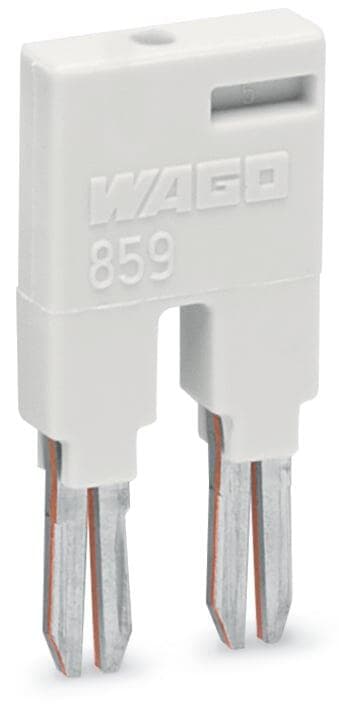

859-402
Product ID:43678
Updated: 2026/7/13
Key Features
- 1Push-In Type Jumper Bar: Easy to install with a simple push-in mechanism.
- 22-Way Configuration: Suitable for connecting two points in a circuit.
- 318A Current Rating: Handles high currents with reliability and safety.
- 4Insulated Design: Ensures electrical isolation and prevents short circuits.
- 5RoHS Compliant: Meets environmental regulations for sustainable electronics.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Rated current | 18A | Width | 10?mm?/ 0.394?inches |
| Height | 21.5?mm?/ 0.846?inches | Depth | 2.5?mm?/ 0.098?inches |
| Color | light gray | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.01MJ |
| Weight | 1g | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-14-11-40 | eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC002586 | ETIM 8.0 | EC002586 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 25?(25)?pcs |
| Packaging type | Bag | Country of origin | DE |
| GTIN | 4066966274165 | Customs tariff number | 8536698000 |
| RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
