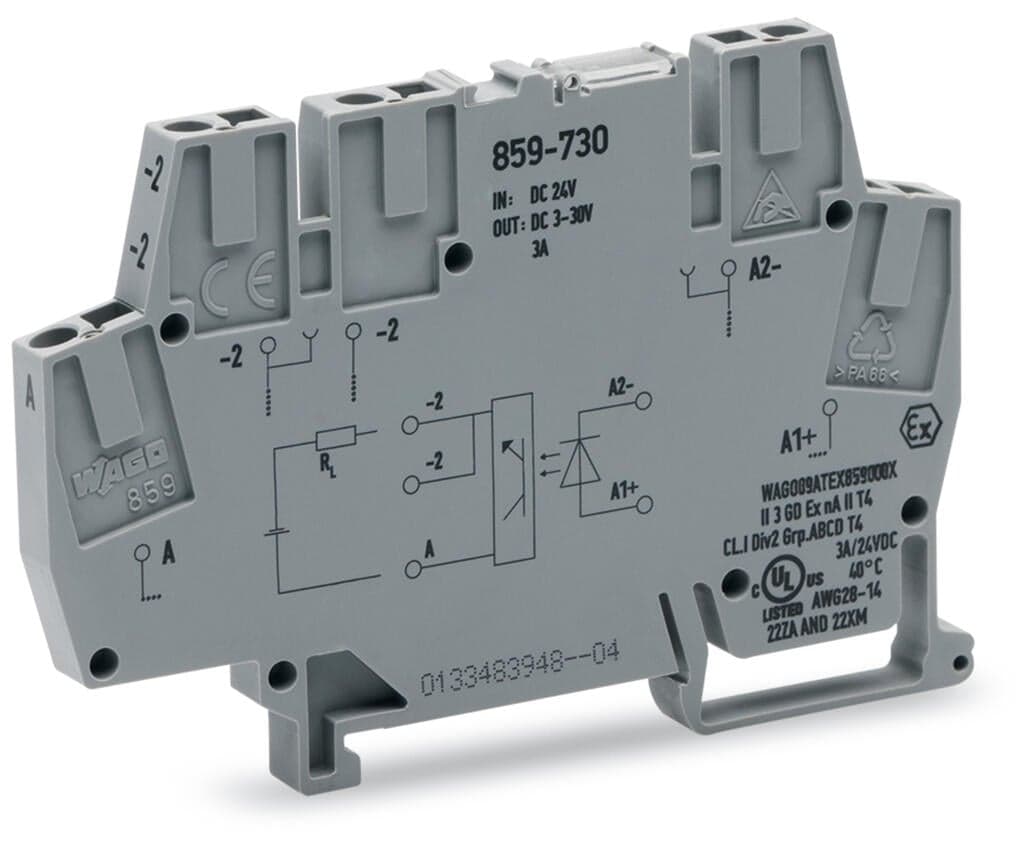

859-730
Product ID:48340
Updated: 2026/4/3
Key Features
- 1Reliable 24VDC operation for precise control.
- 2Output voltage range of 3-30VDC for versatile applications.
- 3Limiting continuous current of 3A for safe operation.
- 4Compact module width of 6mm for space-efficient designs.
- 52-wire connection simplifies installation and reduces wiring complexity.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Rated voltage | 300V |
| Overvoltage category | II | Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1?min) | 2.5?kVrms | Insulation type (control/load circuit) | Basic insulation |
| Insulation type (between adjacent devices of the same type) | Reinforced insulation (safe isolation) | Insulation type (to adjacent devices of different types) | Basic insulation |
| Protection type | IP20; in connected state or when using 859-525 end plate | Connection technology | CAGE CLAMP? |
| Solid conductor | 0.2 … 2.5?mm2?/ 24 … 14?AWG | Fine-stranded conductor | 0.2 … 2.5?mm2?/ 24 … 14?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor; with uninsulated ferrule | 0.2 … 1.5?mm2?/ 24 … 14?AWG |
| Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Width | 6?mm?/ 0.236?inches |
| Height | 91?mm?/ 3.583?inches | Depth from upper-edge of DIN-rail | 56?mm?/ 2.205?inches |
| Mounting type | DIN-35 rail | Mounting position | horizontal (standing/lying); vertical |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Insulation material (main housing) | Polyamide (PA66) | Material group | I |
| Flammability class per UL94 | V0 | Fire load | 0.338MJ |
| Weight | 18.5g | Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C |
| Ambient temperature UL (operation at U<sub>N</sub>) | -40 … +40 °C | Ambient temperature (storage) | -40 … +70 °C |
| Processing temperature | -25 … +50?°C | Temperature range of connection cable | ≥ (Tambient+ 20 K) |
| Relative humidity | 5 … 95?% (no condensation permissible) | Operating altitude (max.) | 2000m |
| Standards/specifications | EN 61010-2-201 | Product Group | 6 (INTERFACE ELECTRONIC) |
| eCl@ss 10.0 | 27-26-15-03 | eCl@ss 9.0 | 27-26-15-03 |
| ETIM 9.0 | EC001504 | ETIM 8.0 | EC001504 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 10?pcs |
| Packaging type | Box | Country of origin | CN |
| GTIN | 4055143604987 | Customs tariff number | 8541500080 |
| CAS-No. | 1303-86-2 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
| RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 6556ad7b-5a4b-4263-9337-83906050ae4b | SCIP notification number (Belgium) | e660b4a5-a966-4c82-9feb-1b133db827e4 |
| SCIP notification number (Bulgaria) | e4cf23dc-19f9-4ecc-9569-934b08d84818 | SCIP notification number (Czech Republic) | 83c7edbd-635b-4061-81af-325616a91c6a |
| SCIP notification number (Denmark) | 72941adf-b006-4c18-8519-1483302531e1 | SCIP notification number (Finland) | 7dc2413a-6773-4d8b-b5c9-8709a114d7e0 |
| SCIP notification number (France) | 76724e1c-686b-460e-bbf0-7d3cbb08ecd4 | SCIP notification number (Germany) | 9f4d9de4-780e-4359-8665-9cdd5198d414 |
| SCIP notification number (Hungary) | 61ec0ba0-0ed8-43fb-b3b6-6dc51b9f3b3b | SCIP notification number (Italy) | 93c82f6e-f5f4-4662-a911-3807be285765 |
| SCIP notification number (Netherlands) | 06241b6c-7650-4848-b248-6c55f36e2645 | SCIP notification number (Poland) | bcffc90f-ec1b-40ab-930c-8c6634d1e259 |
| SCIP notification number (Romania) | e521904f-d719-43f4-80bc-4c2fee4e67d9 | SCIP notification number (Sweden) | ae12280c-c32a-470f-9d04-fa5d360e9bf5 |
| Nominal input voltage U<sub>N</sub> | DC?24?V | Input voltage range (low level) | DC?0 … 7.5?V |
| Input voltage range (high level) | DC?12.5 … 30?V | Nominal input current at U<sub>N</sub> | 15?mA |
| Circuit type | 2-wire connection | Limiting continuous current | 4.8?A |
| Peak output current | 25A | Nominal output voltage | DC?24?V |
| Output voltage range | DC 3 … 30?V | Voltage drop | ≤ 0.4?VDC |
| Leakage current at rated voltage | ≤?45?μA | Turn-on time | ≤?20?μs |
| Turn-off time | ≤?1?ms | Rise time (t<sub>10-90</sub>) | 12μs |
| Drop-out time (t<sub>90-10</sub>) | 15μs | Switching frequency | ≤?2.3?kHz |
| Status indicator | Yellow LED |
