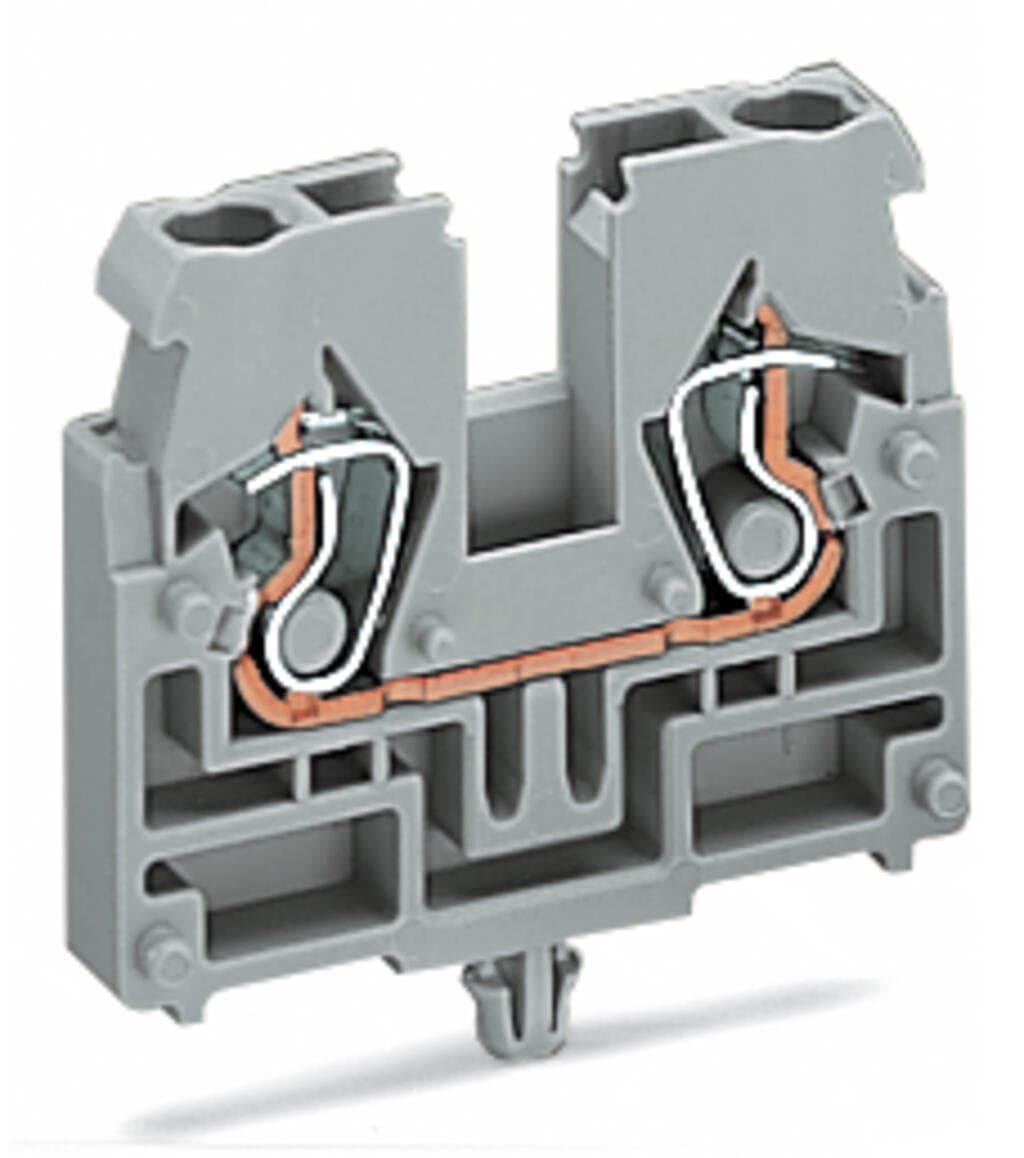

869-311
Product ID:38380
Updated: 2026/7/13
Key Features
- 1Accommodates wire sizes from 0.08mm² to 4mm² or #28AWG to #12AWG.
- 2Supports a rated current of up to 24A.
- 3Features snap-in mounting feet for easy installation on DIN rails or surfaces.
- 4Includes side marking slots for labeling and organization.
- 5Compliant with ROHS standards, ensuring environmental safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 2 |
| Total number of potentials | 1 | Number of levels | 1 |
| Width | 5?mm?/ 0.197?inches | Height from the surface | 27.6?mm?/ 1.087?inches |
| Depth | 33.4?mm?/ 1.315?inches | Design | horizontal type |
| Mounting type | Snap-in foot | Marking level | Side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.073MJ |
| Halogen-free | Yes | Weight | 4.1g |
| eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
| ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4044918480000 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
| Rated impulse voltage (III / 3) | 6kV | Rated current | 24A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
