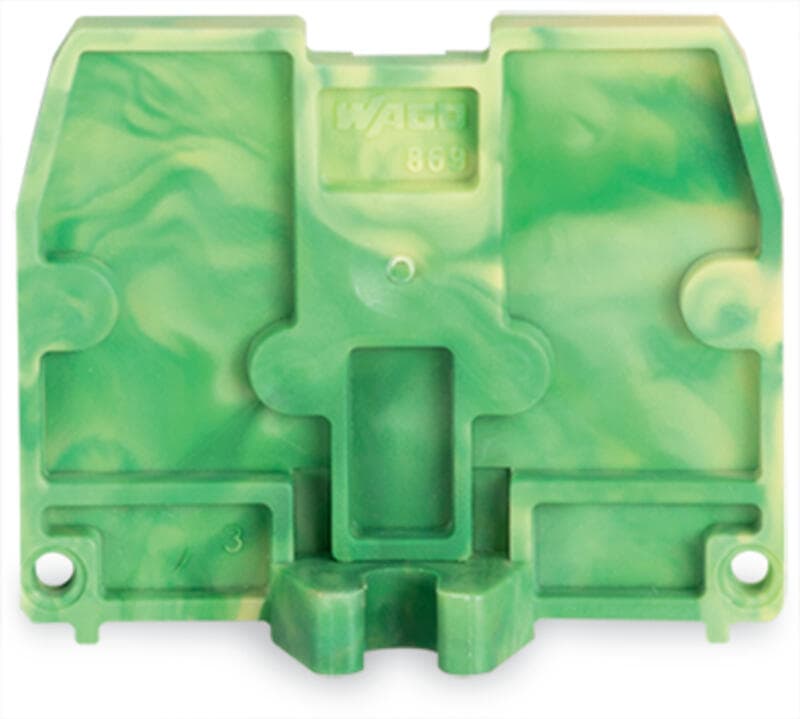

869-389
Product ID:49468
Updated: 2026/7/13
Key Features
- 1Universal connection for solid, stranded, and fine-stranded conductors.
- 2Easy handling with open clamping unit and snap-in mounting feet.
- 3Compatible with 2.5 mm² (4 mm² “f-st”) and 12 AWG conductors.
- 4Durable construction with high-voltage rating up to 500 V/6 kV/3 300 V.
- 5Versatile accessory options including marking systems and test plugs.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2.5?mm?/ 0.098?inches | Height | 27.6?mm?/ 1.087?inches |
| Depth | 33.4?mm?/ 1.315?inches | Note (material data) | Information on material specifications can be found here |
| Color | green-yellow | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.053MJ | Weight | 1.8g |
| Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332548731 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
