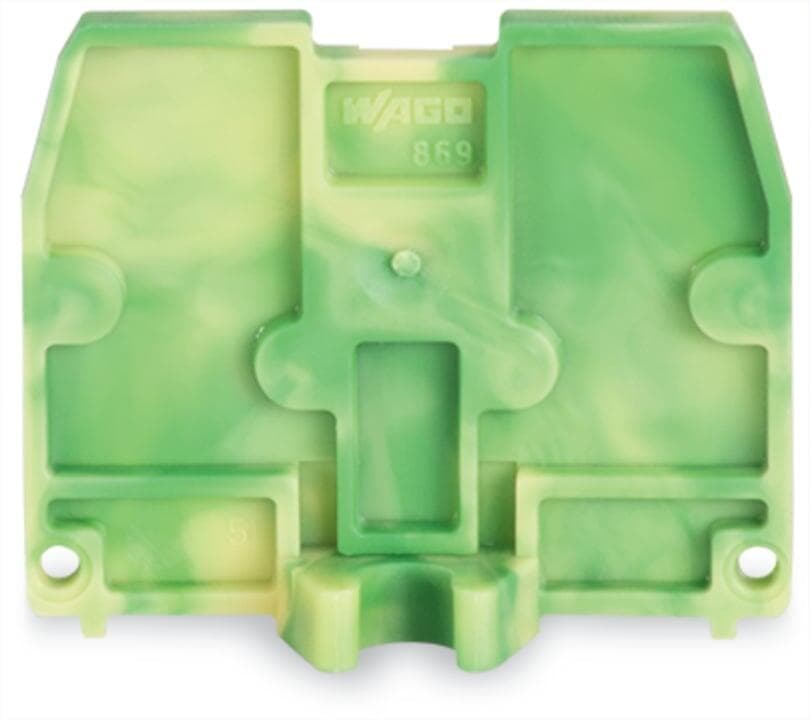

869-399
Product ID:49477
Updated: 2026/7/13
Key Features
- 1Handles solid, stranded, and fine-stranded conductors with ease.
- 2Open clamping unit for simple conductor insertion and secure clamping.
- 3Ensures reliable connections with automatic clamping force adjustment.
- 4Suitable for wiring programmable logic controllers and microprocessor-operated control circuits.
- 5Constructed with high-quality materials for long-lasting performance in demanding environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 2.5?mm?/ 0.098?inches | Height | 27.6?mm?/ 1.087?inches |
| Depth | 33.4?mm?/ 1.315?inches | Note (material data) | Information on material specifications can be found here |
| Color | green-yellow | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.047MJ | Weight | 1.6g |
| Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4017332548779 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
