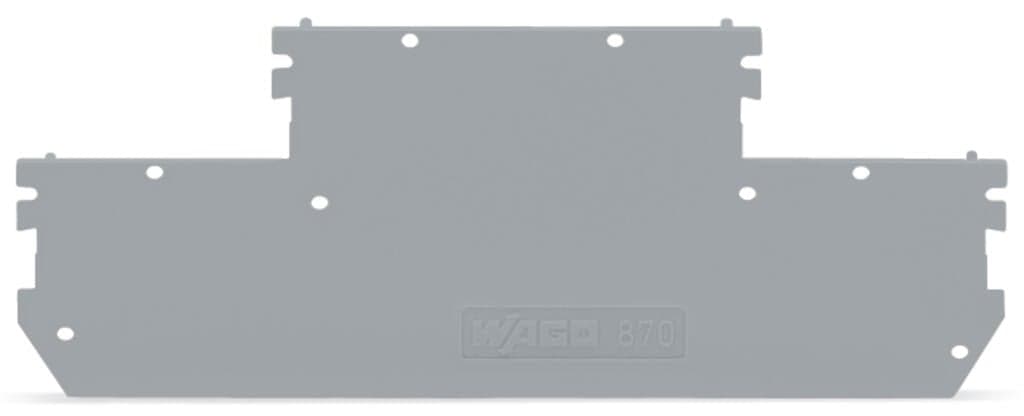

870-168
Product ID:44837
Updated: 2026/7/19
Key Features
- 1Meets environmental standards with no exemptions.
- 2Made from polyamide (PA66) for insulation and fire resistance.
- 31 mm thick, 88.6 mm wide, and 37.1 mm deep.
- 4Operates between -60°C to +105°C.
- 5Available in packs of 25 pieces for convenient use.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 1?mm?/ 0.039?inches | Height | 88.6?mm?/ 3.488?inches |
| Depth | 37.1?mm?/ 1.461?inches | Note (material data) | Information on material specifications can be found here |
| Color | gray | Material group | I |
| Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
| Fire load | 0.092MJ | Weight | 3g |
| Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
| Product Group | 16 (Rail Mounted Terminal Blocks with CCC) | eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 | ETIM 9.0 | EC000886 |
| ETIM 8.0 | EC000886 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?(25)?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4045454461300 |
| Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
