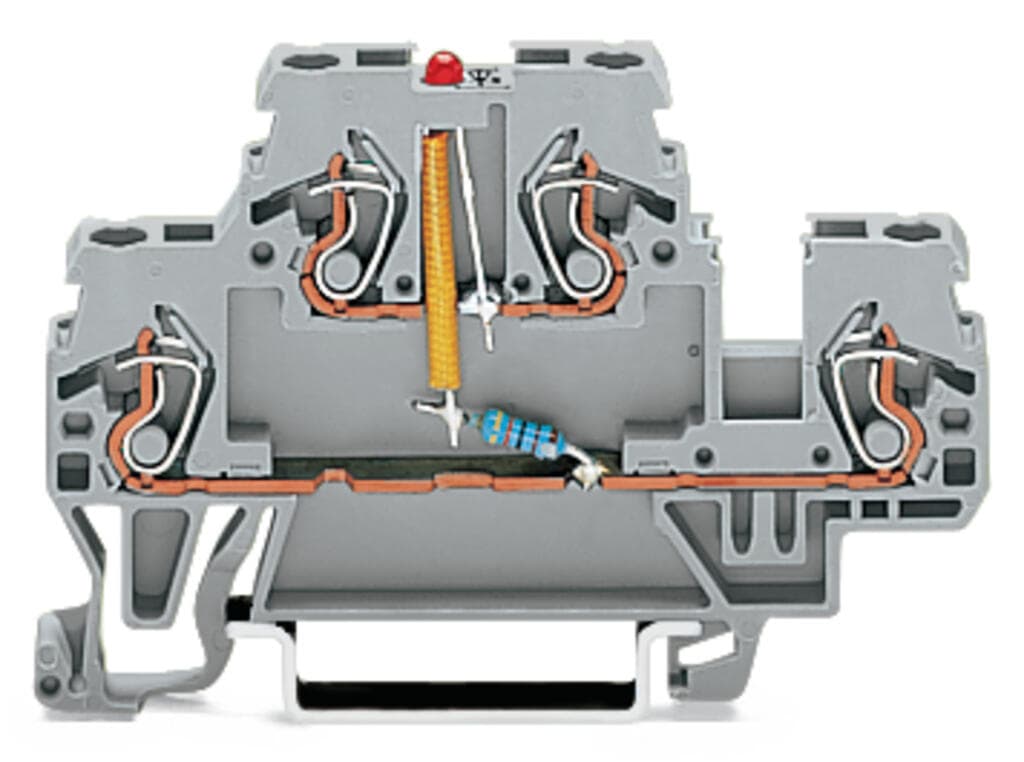

870-543/281-434
Product ID:39773
Updated: 2026/7/15
Key Features
- 1Red LED Indicator: Equipped with a red LED indicator for easy visual monitoring.
- 2Rail-Mount Design: Designed for mounting on DIN-35 rail systems.
- 34-Conductor Connections: Accommodates four wires with two clamps each.
- 4CAGE CLAMP Spring Connections: Secure wire connections using CAGE CLAMP spring technology.
- 5Wide Compatibility: Supports wire sizes from 0.08mm² to 4mm² (#28AWG to #12AWG).
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | Max. insulation diameter: 4.4 mm | Clamping units | 4 |
| Total number of potentials | 1 | Number of levels | 2 |
| Width | 5?mm?/ 0.197?inches | Height | 70?mm?/ 2.756?inches |
| Depth from upper-edge of DIN-rail | 40?mm?/ 1.575?inches | Design | horizontal type |
| Mounting type | DIN-35 rail | Marking level | Side marking |
| Note (material data) | Information on material specifications can be found here | Color | gray |
| Material group | I | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.156MJ |
| Weight | 9.6g | Processing temperature | -35 … +85?°C |
| Continuous operating temperature | -60 … +105?°C | Product Group | 16 (Rail Mounted Terminal Blocks with CCC) |
| eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
| Packaging type | box | Country of origin | DE |
| GTIN | 4045454198732 | Customs tariff number | 8536904000 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
| Rated current | 0.025A | Voltage type 1 | DC |
| Nominal voltage | 24V | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Fine-stranded conductor; with insulated ferrule | 0.08 … 1.5?mm2?/ 28 … 14?AWG | Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches |
| Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
