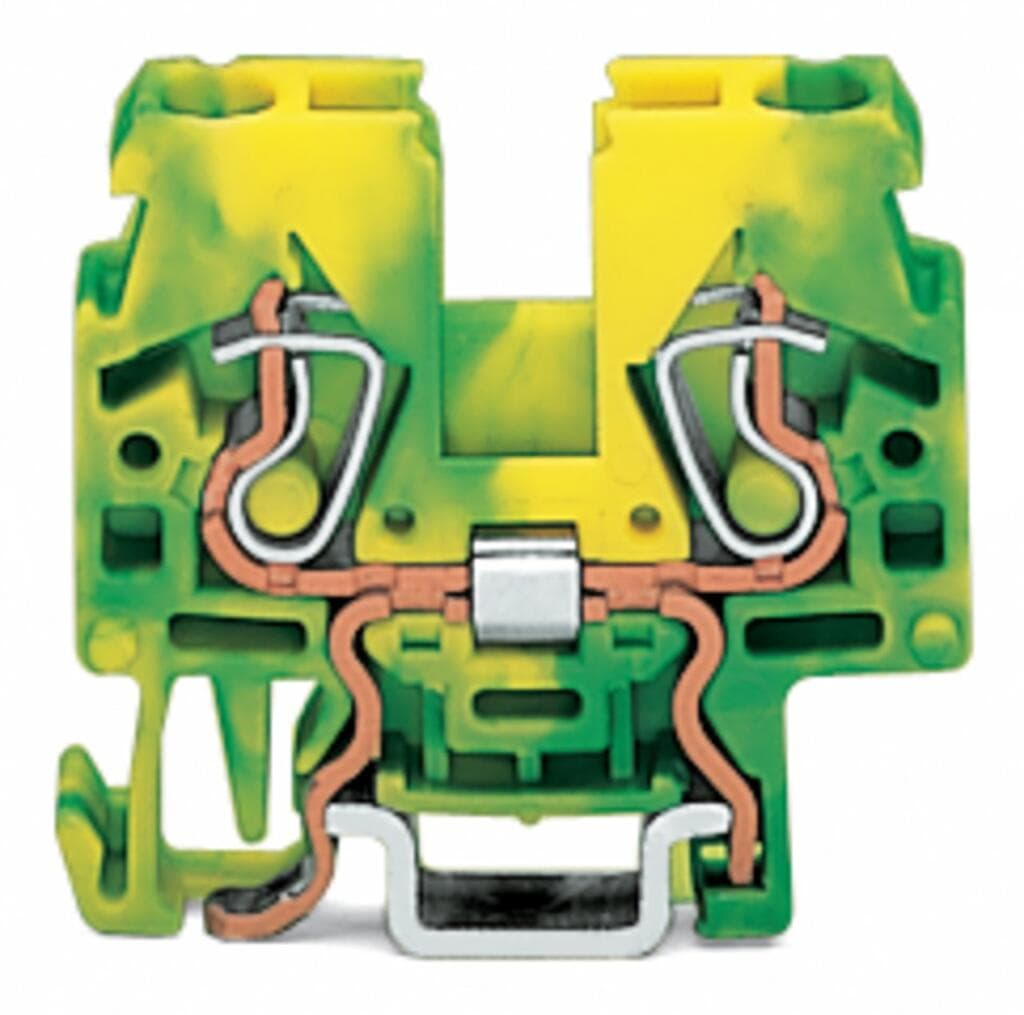

870-917/999-950
Product ID:39782
Updated: 2026/7/15
Key Features
- 1Designed for hazardous environments, ensuring safety and reliability.
- 2Saves labor hours with quick and secure connections.
- 3Easy integration into standard DIN rail systems.
- 4Simplifies wiring and reduces errors with clear visual indicators.
- 5Handles high current requirements with ease.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Safety information | Notice: This ground conductor terminal block cannot be commoned with push-in type jumper bars! | Safety information 2 | Max. insulation diameter: 4.4 mm |
| Clamping units | 2 | Total number of potentials | 1 |
| Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
| Height | 34.5?mm?/ 1.358?inches | Depth from upper-edge of DIN-rail | 26.5?mm?/ 1.043?inches |
| Design | horizontal type | Mounting type | DIN-15 rail |
| Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
| Color | green-yellow | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Fire load | 0.068MJ |
| Weight | 5g | ETIM 9.0 | EC000901 |
| ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 100?pcs | Packaging type | box |
| Country of origin | DE | GTIN | 4055143982412 |
| Customs tariff number | 8536904000 | End of Sale | 2010-02-02 |
| RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-2 |
| Reference hazardous areas | See application instructions in section “Knowledge andDownloads – Documentation – Additional Information: Technical Section; Technical Explications” | Connection technology | CAGE CLAMP? |
| Actuation type | Operating tool | Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
| Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
