883-3530
Product ID:45005
Updated: 2026/7/19
Key Features

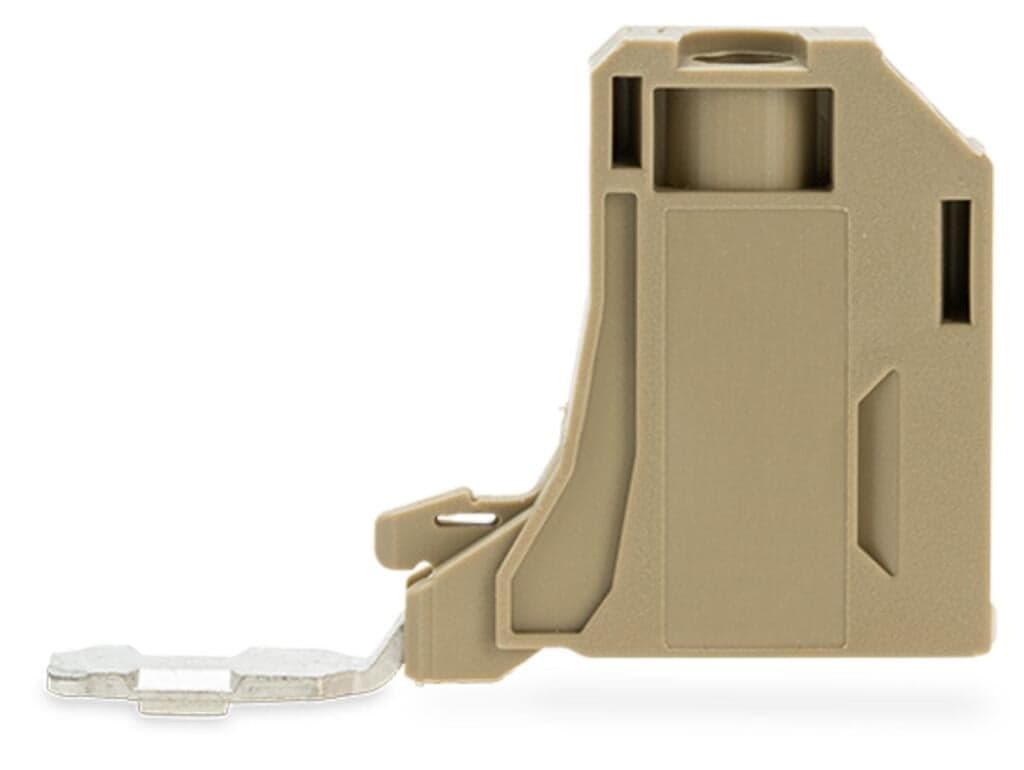

- 1Highly Reliable Connection: The WAGO 883-3530 Power Tap Connector ensures secure and reliable connections for DIN rail terminal blocks.
- 2Versatile Conductivity: Compatible with solid conductors (0.2 … 10 mm²) and stranded conductors (22 … 8 AWG).
- 3Efficient Power Distribution: Designed to handle rated currents up to 41 A and rated surge voltages of 8 kV.
- 4Easy Installation: Features a screw-type connection that can be easily actuated with a slot screwdriver.
- 5Durable Design: Built with high-quality materials to withstand overvoltage category III and pollution degree 3 environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Clamping units | 1 | Connection position | side |
| Tightening torque | 1.2 … 2?Nm | Note (material data) | Information on material specifications can be found here |
| Color | beige | Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 | Weight | 7.2g |
| Continuous operating temperature | -35 … +105?°C | ETIM 9.0 | EC002848 |
| ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 50?pcs | Packaging type | bag |
| Country of origin | DE | GTIN | 4055143940818 |
| Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage (III / 3) | 1000V | Rated impulse voltage (III / 3) | 8kV |
| Rated current | 41A | Current at conductor cross-section (max.) mm2 | 57A |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Connection technology | Screw connection |
| Actuation type | Slot screwdriver; (4 x 0.8) mm blade | Nominal cross-section | 6 mm2 |
| Solid conductor | 0.2 … 10?mm2?/ 22 … 8?AWG | Stranded conductor | 0.2 … 10?mm2?/ 24 … 8?AWG |
| Fine-stranded conductor | 0.2 … 10?mm2?/ 22 … 8?AWG | Fine-stranded conductor; with insulated ferrule | 0.2 … 6?mm2?/ 22 … 10?AWG |
| Strip length | 10?mm?/ 0.39?inches |
Specifications may be subject to change without notice
