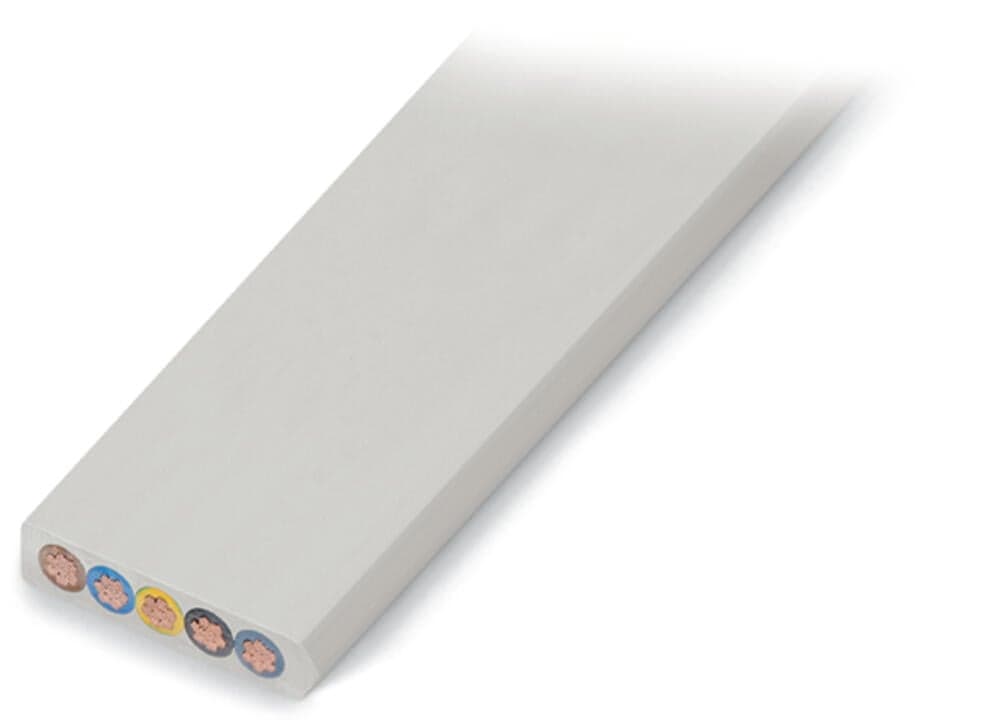

897-1652
Product ID:40167
Updated: 2026/7/13
Key Features
- 1Halogen-free insulation for safety and environmental compliance.
- 2High-voltage rating up to 0.6/1 kV for robust electrical connections.
- 3Durable construction with 3L + N + PE insulation for long-lasting performance.
- 4Compact design with 16 mm² cross-sectional area for efficient wiring.
- 5Ideal for various applications including lighting and control systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 48.5?mm?/ 1.91?inches | Height | 11.3?mm?/ 0.45?inches |
| Variable coding | No | Mismating protection | No |
| Note (material data) | Information on material specifications can be found here | Color | light gray |
| Fire class per EN 50575 | B2ca | Fire load | 10.62MJ |
| Halogen-free | Yes | Silicon-free | Yes |
| Rubber cable | No | Weight | 1319g |
| Copper weight of the pipe | 0.768kg/m | Processing temperature | 5 … 40?°C |
| Continuous operating temperature | -25 … +90?°C | Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
| Product Group | 20 (Winsta) | eCl@ss 10.0 | 27-06-01-06 |
| eCl@ss 9.0 | 27-06-20-02 | ETIM 9.0 | EC003250 |
| ETIM 8.0 | EC003250 | ECCN | NO US CLASSIFICATION |
| PU (SPU) | 1?pcs | Packaging type | box |
| Country of origin | CH | GTIN | 4045454006372 |
| Customs tariff number | 8544429090 | RoHS Compliance Status | Compliant,No Exemption |
| Rated voltage | 0.6 / 1?kV | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
| Number of poles | 5 | Wire cross-section | 16mm2 |
Specifications may be subject to change without notice
