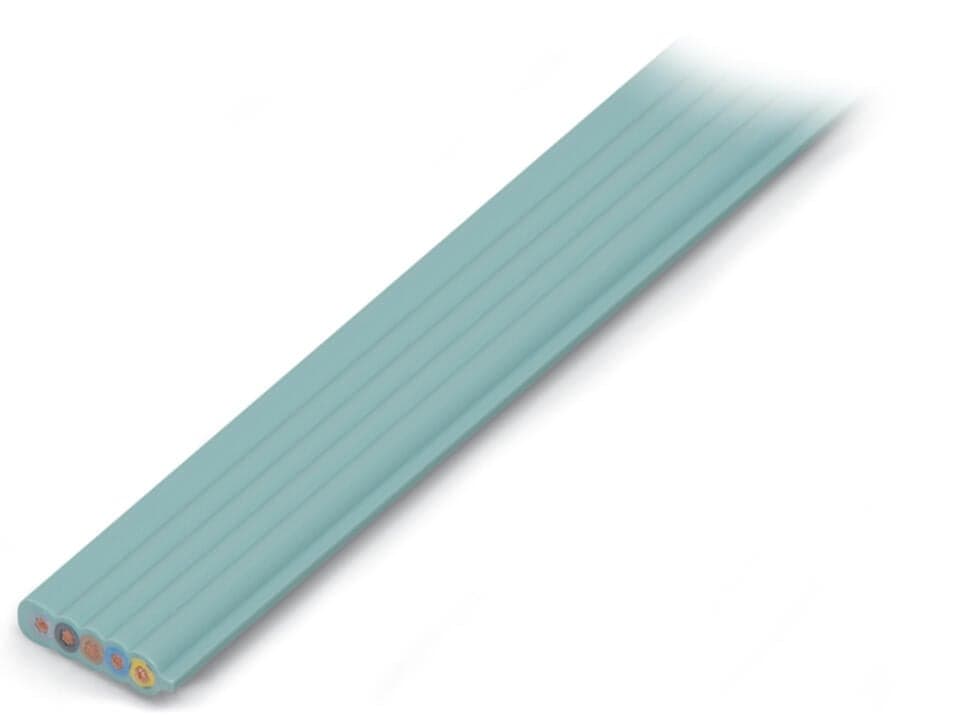

897-252
Product ID:40938
Updated: 2026/7/13
Key Features
- 1Ensures safety and compliance in various environments.
- 2Class 5 flexible conductor for easy installation and movement.
- 3Supports up to 1 kV, suitable for diverse electrical applications.
- 4Easy identification and organization in complex cable systems.
- 5Polyolefin insulation and tinned copper conductors for long-lasting performance.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Width | 24.1?mm?/ 0.95?inches | Height | 6.1?mm?/ 0.24?inches |
| Variable coding | No | Mismating protection | No |
| Note (material data) | Information on material specifications can be found here | Color | green |
| Fire class per EN 50575 | B2ca | Halogen-free | Yes |
| Silicon-free | Yes | Rubber cable | No |
| Weight | 247g | Copper weight of the pipe | 0.12kg/m |
| Processing temperature | 5 … 40?°C | Continuous operating temperature | -25 … +90?°C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C | Product Group | 20 (Winsta) |
| eCl@ss 10.0 | 27-06-01-06 | eCl@ss 9.0 | 27-06-20-02 |
| ETIM 9.0 | EC003250 | ETIM 8.0 | EC003250 |
| ECCN | NO US CLASSIFICATION | PU (SPU) | 1?pcs |
| Packaging type | box | Country of origin | CH |
| GTIN | 4045454267247 | Customs tariff number | 8544429090 |
| RoHS Compliance Status | Compliant,No Exemption | Rated voltage | 0.6 / 1?kV |
| Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Number of poles | 5 |
| Wire cross-section | 2.5mm2 |
Specifications may be subject to change without notice
